8kw Dapeng Card Slot Siemens Metal Forming Equipment

Name: 8kw Dapeng Card Slot Siemens Metal Forming Equipment
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Model Number : LM-Dapeng 1

Certification : CE/ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60set/Year

Delivery Time : 40work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Voltage : 380V/50HZ 3Phase

shaft material : 45#steel

Condition : New

Dimension(L*W*H):v : 4000*900*1300Mm

Production Capacity : 30-40m/min

PLC : mitsubishi/delta/siemens

roller material : 45#steel chrome plated

Pre-feeding system : Straightening

Cutting : Servo tracking cutting

Contact Now

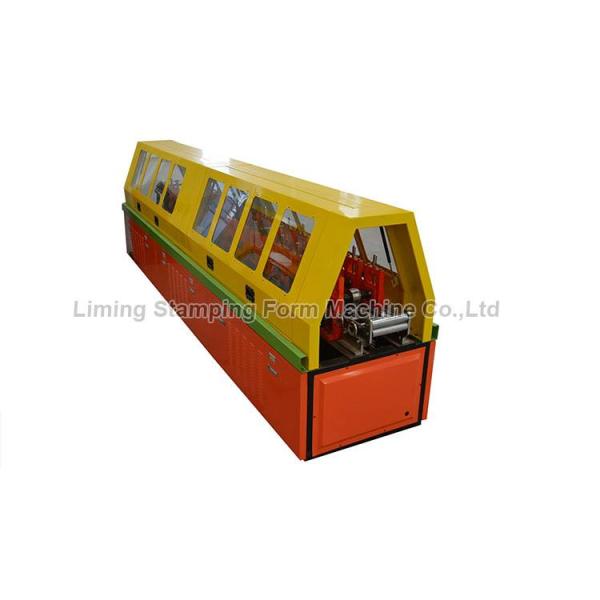

Easy-to-install Dapeng card slot forming machine

In the process of constructing the greenhouse Dapeng, people often choose the Dapeng card slot to fix the insulation cloth and sunshade cloth. Because the Dapeng card slot has, easy to install and disassemble, corrosion resistance, and good pressure resistance, it is well received by people. We can provide Dapeng card slot forming machine to help you produce Dapeng card slot.

Dapeng card slot forming machine adopts electric uncoiling method to keep the raw material feeding speed and production speed constant, so as to ensure that the raw material will not come out and fall completely during the production process.

The whole machine of Dapeng card slot forming machine is controlled by PLC electronic control. Only one person can guarantee the operation and production of the whole machine, thus helping you save labor costs.

The forming host of the Dapeng card slot forming machine is equipped with a protective device to prevent injuries during the operation of the equipment, and to ensure the safe and efficient production of the Dapeng card slot forming machine.

The products produced by the Dapeng card slot forming machine are accurate in size and have no burrs in the cross section, which can be directly installed or used for sale.

Technical Parameters of Easy-to-install Dapeng card slot forming machine

Voltage	380V/50HZ3Phase (as customer’s request)
Raw material	Galvanized steel ,PPGI
Warranty	18 months
After-sales Service Provided	Engineers available to service machinery overseas
Key Selling Points	Easy to Operate
Weight (T)	9T
Material of rollers	GCr15MoV
Material of shafts	45# steel with tempering
Diameter of shafts	φ40mm
Main power	3-8kw
Servo Motor Power	1.2KW
